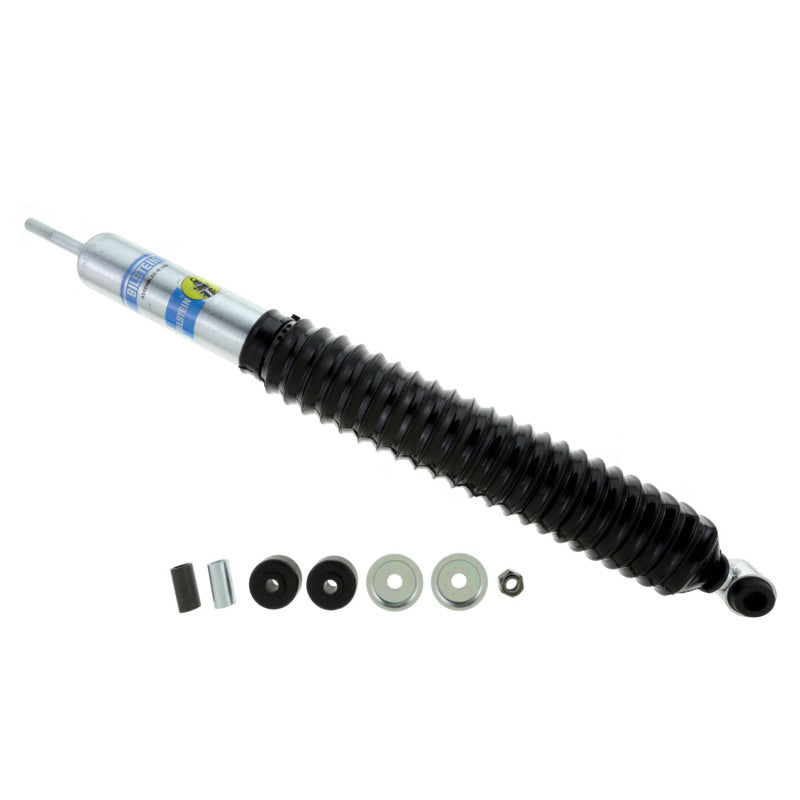

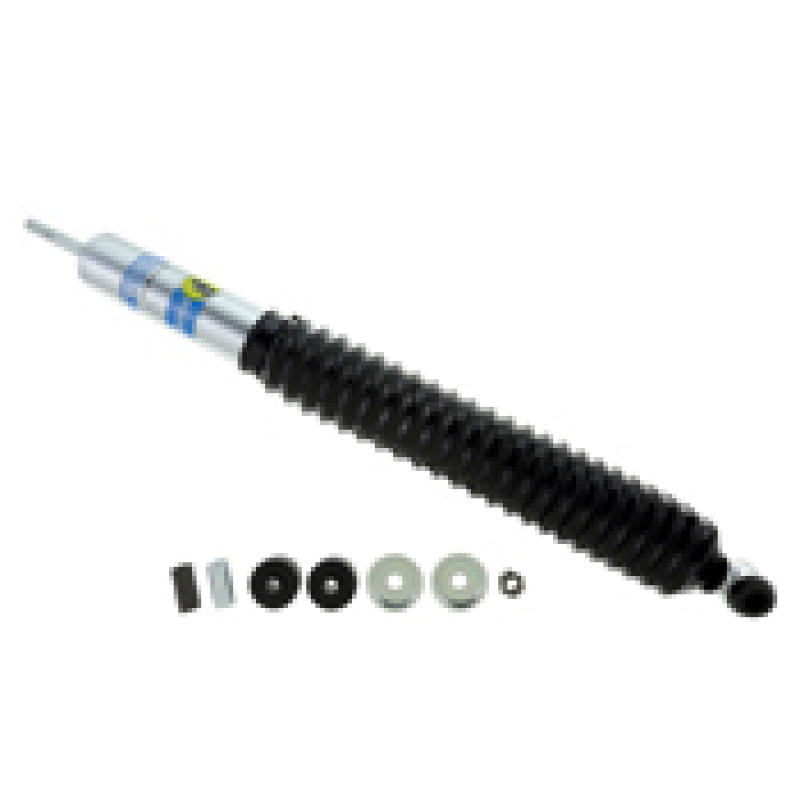

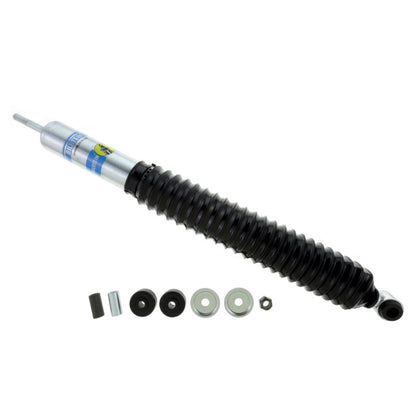

Suspension Shock Absorber Eye 5/8in/Stem Zinc Plated Monotube Non-Adjustable Smooth Body (Non-Coilover) Collapsed Length 14.23 B8 5125 Bilstein

Suspension Shock Absorber Eye 5/8in/Stem Zinc Plated Monotube Non-Adjustable Smooth Body (Non-Coilover) Collapsed Length 14.23 B8 5125 Bilstein

Bilstein

SKU:33-230450

Regular price $120.00
Regular price $168.00 Sale price $120.00
Sale Sold out
Shipping calculated at checkout.
Quantity

Discount available for Military and First Responders.

Unlock Discount
View full details

PRODUCT DESCRIPTION

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.

These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

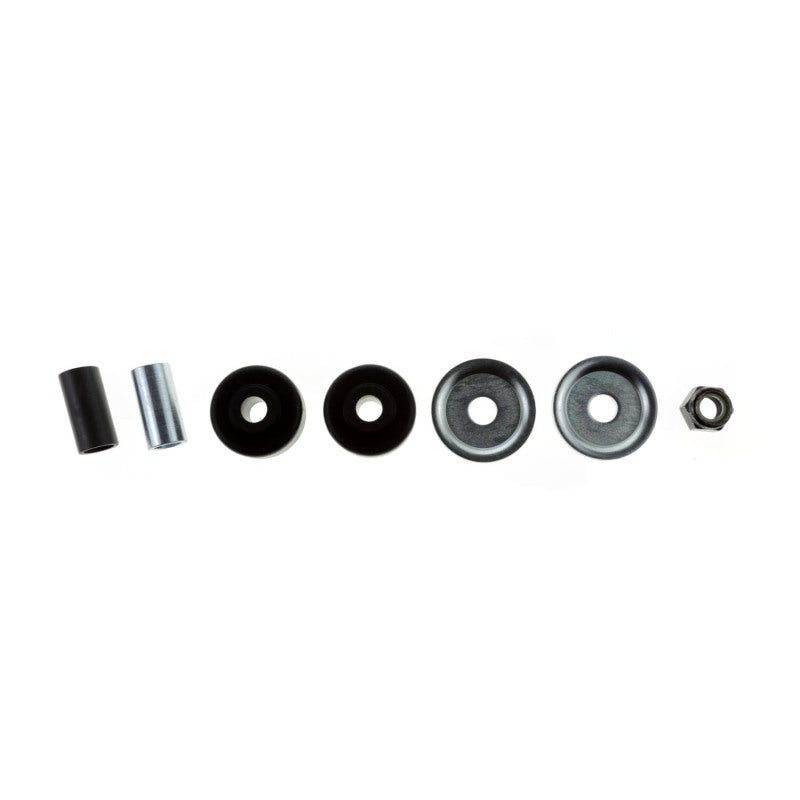

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.

Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Details:

  • Series: B8 5125
  • Internal Design:Monotube
  • Lower Mount Type: Eye 5/8in
  • Upper Mount Type: Stem
  • Finish: Zinc Plated
  • Adjustable: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Collapsed Length Inch: 14.32
  • Compression at 52m s: 755
  • Extended Length Inch: 22.91
  • Boot Included:Black Bellows
  • Mount Type: Stem-to-Eye
  • Pistion Diameter: 46mm
  • Rebound at 52m/s: 3775
  • Reservior: No
  • Shaft Diameter: 14mm
  • Stroke Travel Length In: 8.59
  • Stroke Travel Length In: 218.2
  • Warranty: Limited 90 Day Warranty
